Categories：LED Horticulture Lighting
Introduce：♦ Constant current output mode ♦ Built in active PFC function ♦ IP67/IP65 rating for indoor and outdoor rating ♦ 3-5 years warranty
Features：
♦ Constant current output mode
♦ Built in active PFC function
♦ IP67/IP65 rating for indoor and outdoor rating
♦ 3-5 years warranty
Applications
♦ LED grow lighting
♦ LED panel lighting
♦ LED bulb lighting
♦ Led green housing lighting
Descriptions
HLB--HLA-50W serise is a 50W AC/DC constant current mode output led power supply.HLB-50W serise operates from 90-277V and offers models with different rated voltage ranging between 20V and 100V.Efficiency could be reach to 88% or 90%,PFC could be reach to 95%-98%.ZF-HLA-50XL series is a high power factor, low THD, high efficiency, high reliability, High precision of constant current LED driver power supply, but also has perfect protection function, in order to ensure the service life and reliability of power and lamps.
Specification
| Model | ZF-HLA-50H-43 | ZF-HLB-50W-65 | ZF-HLB-50-90 | ZF-HLB-50-110 | ZF-HLB-50-130 | |||||
| output | DC voltage | 49VDC | 72VDC | 100VDC | 120VDC | 136VDC | ||||
| Rated current | 1.2A | 0.77A | 0.55A | 0.46A | 0.38A | |||||
| Rated power | 50W | 50W | 50W | 50W | 50W | |||||
| Ripple&noise | 3000mVAC | 3000mVAC | 2000mVAC | 2000mVAC | ||||||
| current error | 3% | 3% | 3% | 3% | 3% | |||||
| Output voltage range | 25-43VDC | 35-65VDC | 50-90VDC | 60-110VDC | 70-130VDC | |||||
| Line regulation | ±2% | ±2% | ±2% | ±2% | ±2% | |||||
| Load regulation | ±2% | ±2% | ±2% | ±2% | ±2% | |||||
| Setup,rise time | 700ms,1500ms(full load) 230VAc/115VAc | |||||||||
| Hold up time | 15ms / 115VAC, 230VAC | |||||||||
| Input | Input voltage | 90-277V | ||||||||
| Frequency range | 47-63HZ | |||||||||
| Power factory | PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load | |||||||||
| Total Harmonic distortion | THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) | |||||||||
| Efficiency | 90% | 91% | 92% | 92% | 91% | |||||
| AC current | 0.64A / 115VAC 0.32A / 230VAC 0.3A / 277VAC | |||||||||
| Inrush current | COLD START 55A(t width=265μs measured at 50% I peak) at 230VAC; Per NEMA 410 | |||||||||
| Leakage current | <0.75mA / 277VAC | |||||||||
| Protection | Over current | Constant current limiting, recovers automatically after fault condition is removed | ||||||||
| Short circuit | Hiccup mode, recovers automatically after fault condition is removed | |||||||||
| Over temperature | Shut down o/p voltage, re-power on to recover | |||||||||
| Environment | Working Temp. | Tcase= -40 ~ +60℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section) | ||||||||
| Max.Case Temp. | Tcase= +80℃ | |||||||||
| Working Humidity | 20 ~ 95% RH non-condensing | |||||||||
| Temp.coefficient | ±0.03%/℃(0 ~ 60℃) | |||||||||
| Vibration | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| Safty and standards | Safty standards | EN 61347-1：2008+A1：2011+A2：2013 ,EN 61347-2-13：2006, EN 62493：2010 | ||||||||
| Isolaton resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |||||||||
| EMC emission | Compliance to EN55015, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3,GB17743 and GB17625.1 | |||||||||
| EMC immunity | Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV) | |||||||||
| Others | MTBF | 1132K hrs min. Telcordia SR-332 (Bellcore) ; 338K hrs min. MIL-HDBK-217F (25℃) | ||||||||
| Dimension | 82.8*52*34mm | |||||||||
| Packing | 0.11kg/pcs 50pcs/5.5kg | |||||||||
| Note |
1.All parameters not specially mentioned are measured at 230vAc input,rated current and 25℃of ambient temperature 2. ripple and noise measurement method using a 0.5 - mm twisted pair, and terminal capacitor in parallel with 0.1uF and 47uF, were measured in a 20MHZ bandwidth. 3. safety design of EN60598-1 and EMC, CNS15233, GB700.1, FCC, part18. 4. start time is measured in the cold start, switch frequently may make the starting time of change. 5. the power supply is considered as a component, which is used in conjunction with the terminal equipment. Because the EMC is affected by the whole set of equipment, the terminal equipment manufacturer needs to make a EMC confirmation of the whole set of devices 6. reference Warranty Statement |
|||||||||

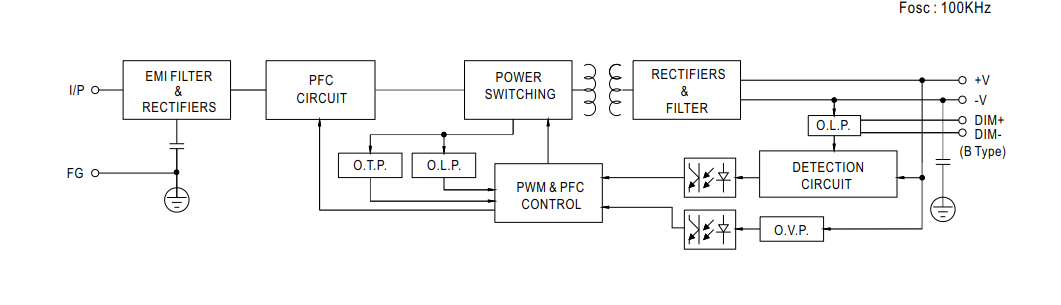

Block diagram

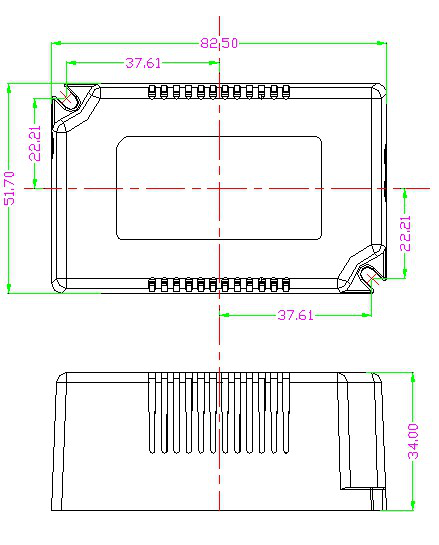

Dimension
