Categories：HLD series (non-dimmable)
Introduce：♦ International universal AC input range (up to 300VAC) ♦ With active PFC function ♦ Protection type: short circuit protection, over current protection, over voltage protection, over temperature protection ♦ IP66 protection level, indoor and outdoor installation ♦ Suitable for LED lighting ♦ in line with world lighting safety standards ♦ Can be applied in dry, humid, rainy environments ♦ 3...
Features：
♦ International universal AC input range (up to 300VAC)
♦ With active PFC function
♦ Protection type: short circuit protection, over current protection, over voltage protection, over temperature protection
♦ IP66 protection level, indoor and outdoor installation
♦ Suitable for LED lighting
♦ in line with world lighting safety standards
♦ Can be applied in dry, humid, rainy environments
♦ 3 year warranty (please refer to warranty description)
Specification
| Modeld | ZF-HLD-30-36 | ZF-HLD-30-43 | ZF-HLD-30-54 | ZF-HLD-30-65 | ZF-HLD-30-72 | ZF-HLD-30-88 | Non-standard custom models | |
| Output | No-load voltage（MAX） | 49VDC | 49VDC | 75VDC | 75VDC | 95VDC | 95VDC | Customized |
| Output current（Typ） | 0.9A | 0.75A | 0.6A | 0.5A | 0.45A | 0.35A | Customized | |
| Output Power（MAX） | 33W | 33W | 33W | 33W | 33W | 33W | Customized | |
| Ripple and noise Remarks2 | 4000mV | 3000mV | 4000mV | 4000mV | 4000mV | 4000mV | MAX 4000mV | |
| Output voltage range | 25-43VDC | 25-43VDC | 30-54VDC | 35-65VDC | 40-72VDC | 50-88VDC | Customized | |
| Conversion efficiency（Typ） | ≥88% | ≥89% | ≥90% | ≥91% | ≥91% | ≥92% | ≥88% | |
| Current error（MAX） | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | |
| Linear adjustment rate | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | |
| Load Regulation | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | |
| Start Time Remarks3 | ≤1000ms，≤2000ms（Full load）230VAC/115AC | |||||||
| Hold time（Typ） | 10msFull load 230VAC/115VAC | |||||||
| Input | Voltage range | 100-300VAC Or 130-430VDC | ||||||
| Frequency Range | 47-63HZ | |||||||
| Power factor（Typ） | PF≥0.95 230VACFull load | |||||||
| Total harmonic distortion（Typ） | ＜15%（Loaded lamps as standard） | |||||||
| Alternating current（Typ） | ＜0.45A/115VAC， ＜0.15A/230VAC， ＜0.1A/277VAC | |||||||
| Inrush current（Typ） | Cold start<50A /230VAC | |||||||
| Leakage current | ＜0.75MA/300VAC | |||||||
| Protection | Overcurrent | 100% | ||||||
| Short circuit | Protection mode: snoring, the short circuit can be restored after removal | |||||||
| Overload protection | Maximum operating voltage limit。 | |||||||
| Environment | Operating temperature | -40---+60℃ | ||||||
| Working humidity | 20-95%RH，No condensation | |||||||
| Storage temperature, humidity | -40-+80℃，20-95%RH | |||||||
| Maximum temperature rise | +30℃ Windless open environment, maximum temperature point of the enclosure | |||||||
| Vibration resistant | 10-500HZ,5G 12Minute/cycle，X, Y, Z axis 72 minutes each | |||||||
| Safety and electromagnetic compatibility | Safety regulations Remarks4 | EN 61347-1：2008+A1：2011+A2：2013 , EN 61347-2-13：2006 , EN 62493：2010 | ||||||
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1KVAC | |||||||
| Insulation resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70%RH | |||||||
| Electromagnetic compatibility emission Remarks5 | Meets the EN55015，EN55022(CISPR22),Class B,EN61000-3-2 ：2006+AA:2009 | |||||||
| Electromagnetic compatibility immunity | EN55024-A , EN61000-3-3：2013 | |||||||
| Lightning surge | Common mode | L/N-FG,±3KV | ||||||
| Differential mode | L-N,±0.8KV | |||||||
| Wire | Rubber line | Input line3*0.75² | ||||||
| Electronic line | Output line0.75² | |||||||
| Shell | Semi-aluminum housing | Silicone filling and filling | ||||||
| Other | MTBF | ≥150Khrs MIL-HDBK-217F(25℃) | ||||||
| Body size | L102*W44*H28mm | |||||||
| Product Weight | ||||||||
| Package carton size | L188*W75*H43 | |||||||
| Remarks |
1.Unless otherwise stated, all specifications are measured at an input temperature of 230VAC. 25°C ambient temperature. 2.Ripple and noise measurement method: use a 0.52mm twisted pair cable, and the terminal should be connected with 0.1uf and 47uf capacitors in parallel and measure at 20MHz bandwidth. 3.Safety and EMC design EN60598-1, CNS15233, GB700.1, FCC part18. 4. Start-up time is measured under the cold start, frequent switch machine may make the start time change. 5.The power supply is considered to be a component used in conjunction with the terminal equipment. Because the EMC is affected by the complete unit, the terminal equipment manufacturer needs to confirm the EMC of the entire unit. |
|||||||

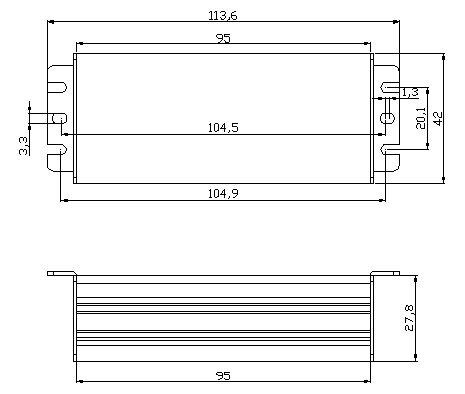

Structure size
Body size：L100*W42*H28mm
Circuit structure box
