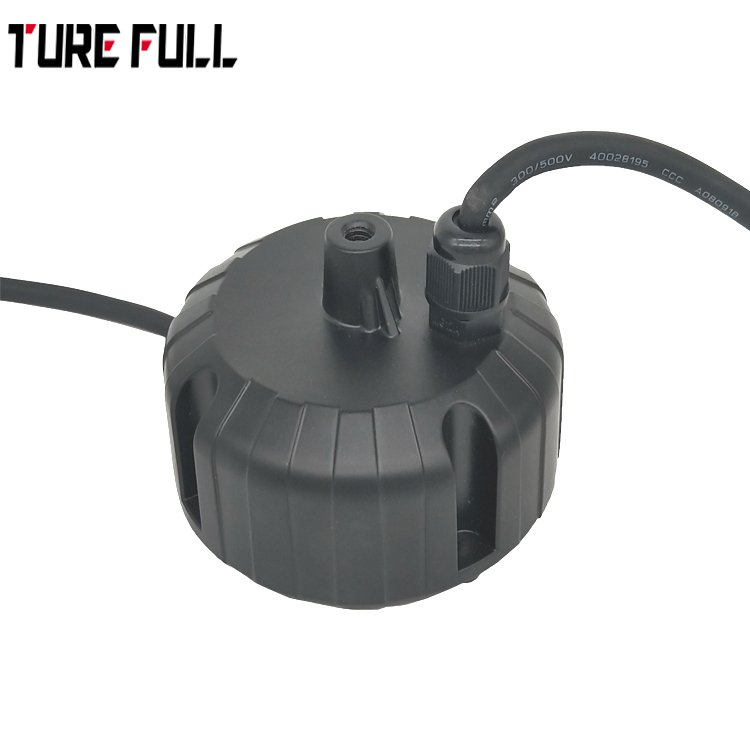

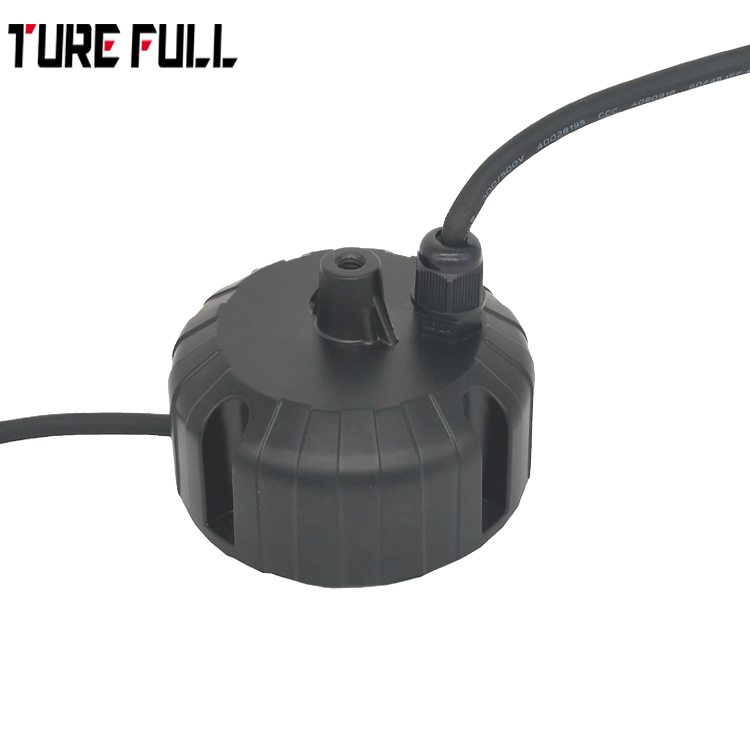

Introduce： Features： ♦ Constant current output mode ♦ Built in active PFC function ♦ IP67/IP65 rating for indoor and outdoor rating ♦ 3-5 years warranty Applications ♦ LED high bay lighting ♦ LED stage lighting ♦ LED street lighting Dimensions Φ110.5*H57.5mm Specification Modeld ZF-HBG-60-36 ZF-HBG-60-43 ZF-HBG-60-54 ...
Features：
♦ Constant current output mode
♦ Built in active PFC function
♦ IP67/IP65 rating for indoor and outdoor rating
♦ 3-5 years warranty
Applications
♦ LED high bay lighting
♦ LED stage lighting
♦ LED street lighting
Dimensions
Φ110.5*H57.5mm
Specification
| Modeld | ZF-HBG-60-36 | ZF-HBG-60-43 | ZF-HBG-60-54 | ZF-HBG-60-65 | ZF-HBG-60-72 | ZF-HBG-60-88 | Non-standard custom models | |
| Output | No-load voltage（MAX） | 45VDC | 55VDC | 75VDC | 75VDC | 95VDC | 95VDC | Customized |
| Output current（Typ） | 1.8A | 1.5A | 1.1A | 1A | 0.9A | 0.7A | Customized | |
| Output Power（MAX） | 65W | 65W | 65W | 65W | 65W | 65W | Customized | |
| Ripple and noise Remarks2 | 3000mV | 3000mV | 3000mV | 3000mV | 3000mV | 3000mV | MAX 3000mV | |
| Output voltage range | 25-43VDC | 25-43VDC | 30-54VDC | 35-65VDC | 40-72VDC | 50-88VDC | Customized | |
| Conversion efficiency（Typ） | ≥90% | ≥90% | ≥91% | ≥91% | ≥92% | ≥92% | ≥90% | |
| Current error（MAX） | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | |
| Linear adjustment rate | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | |
| Load Regulation | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% | |
| Start Time Remarks3 | ≤1000ms，≤2000ms（Full load）230VAC/115AC | |||||||
| Hold time（Typ） | 10msFull load 230VAC/115VAC | |||||||
| Input | Voltage range | 100-300VAC Or 130-430VDC | ||||||
| Frequency Range | 47-63HZ | |||||||
| Power factor（Typ） | PF≥0.98 230VACFull load | |||||||
| Total harmonic distortion（Typ） | ＜10%（Loaded lamps as standard） | |||||||
| Alternating current（Typ） | ＜0.8A/115VAC， ＜0.45A/230VAC， ＜0.35A/277VAC | |||||||
| Inrush current（Typ） | Cold start<50A /230VAC | |||||||
| Leakage current | ＜0.75MA/300VAC | |||||||
| Protection | Overcurrent | 100% | ||||||
| Short circuit | Protection mode: snoring, the short circuit can be restored after removal | |||||||
| Overload protection | Maximum operating voltage limit。 | |||||||
| Environment | Operating temperature | -40---+60℃ | ||||||
| Working humidity | 20-95%RH，No condensation | |||||||
| Storage temperature, humidity | -40-+80℃，20-95%RH | |||||||
| Maximum temperature rise | +30℃ Windless open environment, maximum temperature point of the enclosure | |||||||
| Vibration resistant | 10-500HZ,5G 12Minute/cycle，X, Y, Z axis 72 minutes each | |||||||
| Safety and electromagnetic compatibility | Safety regulations Remarks4 | EN 61347-1：2008+A1：2011+A2：2013 , EN 61347-2-13：2006 , EN 62493：2010 | ||||||
| Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1KVAC | |||||||
| Insulation resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70%RH | |||||||
| Electromagnetic compatibility emission | EN55015 , EN55022(CISPR22),Class B,EN61000-3-2 ：2006+AA:2009 | |||||||
| Electromagnetic compatibility immunity | EN55024-A , EN61000-3-3：2013 | |||||||
| Lightning surge | Common mode | L/N-FG,±4KV | ||||||
| Differential mode | L-N,±2KV | |||||||
| Wire | Rubber line | Input line3*0.75² | ||||||
| Rubber line | Output line2*0.75² | |||||||
| Shell | Semi-aluminum housing | Silicone filling and filling | ||||||
| Other | MTBF | ≥150Khrs MIL-HDBK-217F(25℃) | ||||||
| Body size | Φ110.5*H51mm | |||||||
| Product Weight | ||||||||
| Package carton size | ||||||||
| Remarks |
1.Unless otherwise stated, all specifications are measured at an input temperature of 230VAC. 25°C ambient temperature. 2.Ripple and noise measurement method: use a 0.52mm twisted pair cable, and the terminal should be connected with 0.1uf and 47uf capacitors in parallel and measure at 20MHz bandwidth. 3.The startup time is measured under the cold start, and frequent switching machines may change the startup time. 4.Safety designTUVEN61347-1,EN61347-2-13,IEC/EN60968-1.2004+A1：2006 5.The power supply is considered to be a component used in conjunction with the terminal equipment. Because the EMC is affected by the complete unit, the terminal equipment manufacturer needs to confirm the EMC of the entire unit. |
|||||||

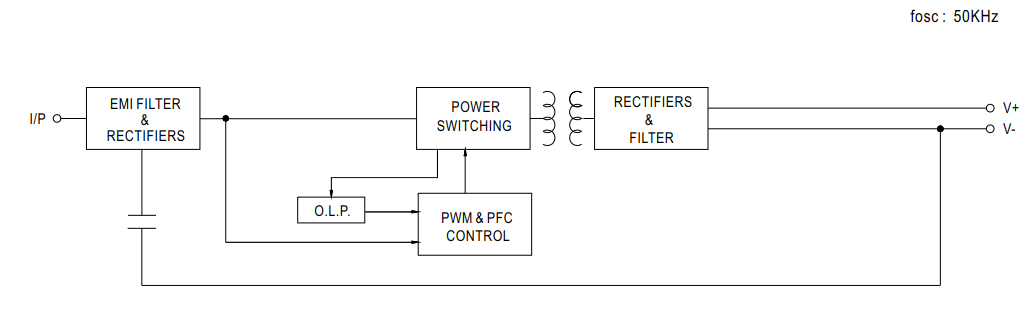

Block Diagram
Declaration
1.the picture is for reference only, products in kind prevail.
2.Due to errors in the test equipment, the conversion efficiency is only for reference.
3.power can not be soaked in water for a long time.
Product Usage Notes
1. When the device is powered, please pay attention to the correct installation of the input and output terminals.
2. When the power supply is turned on for the first time, if a light flash occurs, check the DC output terminal; if it is confirmed that the load voltage of the DC output terminal is lower than the minimum operating voltage, when the load voltage is lower than the minimum operating voltage, the power supply is not in operation. In the normal work area, various abnormal conditions will occur.
3. When the power is turned on for the first time, if the load power is low, check the DC output voltage and confirm whether the DC output voltage is lower than the maximum operating voltage. If the load voltage is higher than or equal to the maximum operating voltage, When the power supply enters the constant voltage operation mode, the power supply loses the constant current function and changes to the load impedance constant current. After encountering this situation, it is necessary to replace the power supply with higher operating voltage to properly match the lamps.
Warranty instructions
1.the warranty date start date is the product date of manufacture
2.The product damage caused by using the environment beyond the nominal range of the specification is not covered by the warranty.
3.Product damage caused by incorrect installation and use is not covered by the warranty.
4. Product failure caused by long-term immersion in water is not covered by the warranty.
5.Users will not warranty after disassembling the product.
